Kag Cheetah E-rickshaw

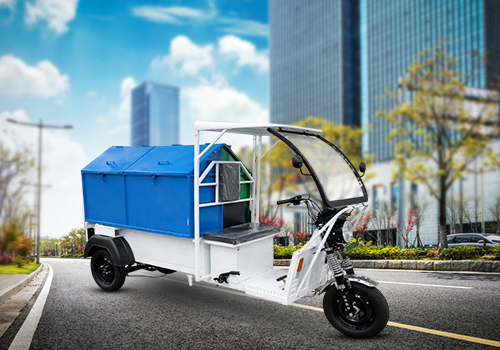

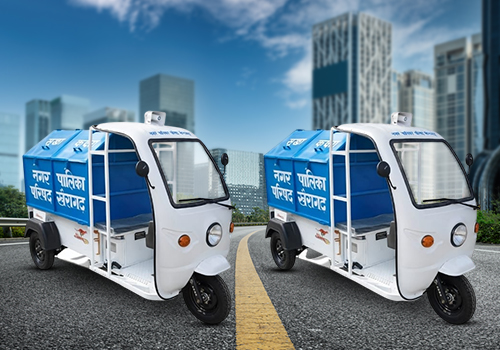

KAG Cheetah Super - E Cart Garbage

Efficient, Durable, Electric

SPECIFICATIONS	TECHNICAL SPECIFICATION	VALUES
Generic Parameters	Vehicle Category	E - cart (Garbage)
	Used for	Garbage Collection & Disposal
	Type of Body / Container	E-Cart With Twin Bin Type

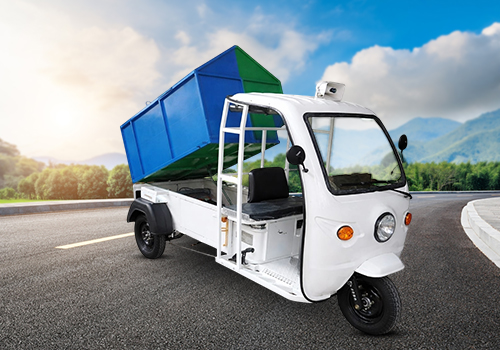

	Tipping	Automatic/Manual Hydraulic System
	Body /Container Volume (cubic metres)	0.5 Cubic meter
	Body /Container Material	Mild Steel as per IS 2062
	Body /Container Plate Thickness (mm)	1.6 milimeter
	Power Source	Electric -Battery Operated
	Maximum Power Output (kw)	1200 WATT to 1500 WATT
	Type of Traction Battery	Lead Acid / Li-ion (As per requirement)
	Traction Battery Capacity (in AH)	100Ah to 150Ah (As per requirement)
	Motor & Controller voltage (Watt)	1200 WATT TO 1500 WATT
	Type of Motor	BLDC
	Operating Voltage of Vehicle (in Volts)	48 V / 60 V (As per requirement)
	Seating Capacity (Including Driver)	1
	Maximum Speed of the Vehicle (km/h)	25
	Type of Front Tyre	Tube -type
	Type of Rear Tyre & Stepney	Tube -type
	Front Tyre Designation as per IS 15627 (Latest Version)	3.75-12
	Rear Tyre Designation as per IS 15627 (Latest Version)	3.75-12
	Type of Front Brake	Drum Brake
	Type of Rear Brake	Drum Brake
	km Range as per AIS 040	80 kilometer
	Windshield	Made of suitable safety glass provided
Dimensions	Additional Accessories	Fire Extinguisher
	Overall Length of Vehicle (mm)	2800 millimeter
	Overall Width of Vehicle (mm)	1000 millimeter
	Overall Height of Vehicle (mm)	1800 millimeter
	Ground Clearance (mm)	180 millimeter
	Wheel Base (mm)	2100 millimeter
	Gradeability (Degree)	7 degree
	Maximum Gross Vehicle Weight (Kg)	726 kilogram
Certifications & Warranty	Load Carrying capacity (Payload) (kg)	310 kilogram
	Certification Type	Complete Vehicle Certification
	Certifying Agency	ICAT
	Agreed to furnish all the test reports and certificates to buyer / consignee on demand	Yes
	Standard Vehicle Warranty (minimum)	1 Year
	Battery Warranty (minimum)	Lead Acid - 1 Year Li-Ion - 3 Years
